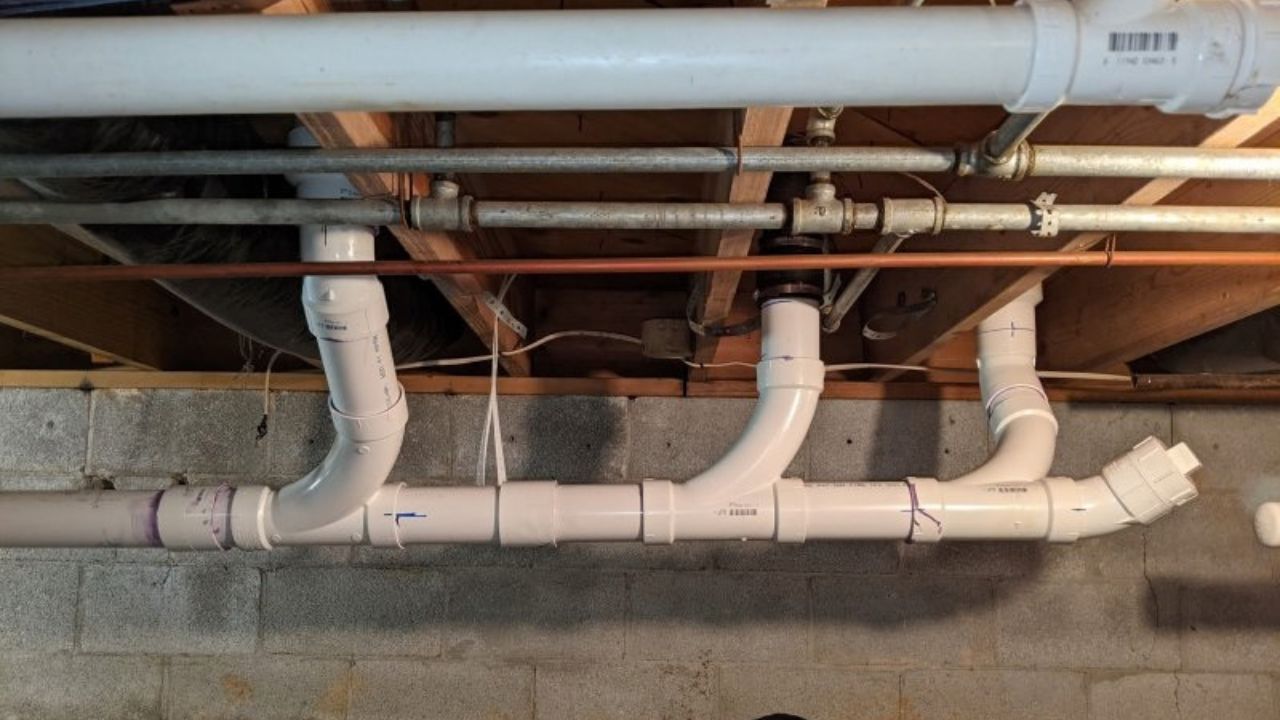

A rough in central vacuum system is your one shot before drywall closes, and a bad pipe run gets buried for the life of the house. The term “roughed in” has no legal or enforced definition, so buyers keep finding wall plates wired to nothing at all.
Finish this guide and you’ll know exactly what pipe, wire, and fittings belong in your walls, what a fair quote looks like, and how to test every joint before the drywall crew shows up. You’ll also know when skipping the rough in is the smarter call.
Keynote: Rough In Central Vacuum System
A rough in central vacuum system means installing 2-inch PVC pipe, 20-gauge wire, and inlet backing plates before drywall closes, so a power unit can connect later without opening a wall. It works for new builds and gut renovations. Builders keep this option open for a few hundred dollars now instead of a full wall repair later.
Why the Rough In Stage Decides Everything
The rough in stage decides everything because it’s the only point in construction when pipe, wire, and inlet backing plates go into open framing at once. Miss this window, and every later addition means cutting into finished walls.
The One Week Window You Can’t Get Back
The rough in window sits after HVAC and electrical finish and before insulation and drywall, lasting about a week on a standard build schedule. Picture the drywall truck already in the driveway, the last chance to run pipe through open studs.
Miss it, and retrofit labor jumps 25 to 35 percent, because a crew now has to fish pipe through finished cavities instead of drilling open framing. This is why anyone building a home with central vacuum treats the rough in like a hard deadline, not a nice-to-have.
Why “We’ll Add It Later” Usually Means Never
“We’ll add it later” usually means never, because retrofit work means fishing pipe through closets, soffits, and stud bays after the walls are already closed. New build pipe runs cost roughly 60 cents to a dollar per linear foot.
Retrofit rates run well above that once a crew has to open and repatch drywall. The honest math: an afternoon now, or a full day of wall surgery later.
You Don’t Need the Vacuum Unit Yet
A rough in works without buying the power unit or hose kit at all. Pipe, wire, and inlet backing plates go in now; the machine comes whenever the budget allows.
This is how builders keep the central vacuum option open for pennies on the dollar, with no brand or motor size to pick before the crew shows up.
What Does a Rough In Central Vacuum System Actually Include?
A rough in central vacuum system includes the trunk and branch PVC pipe to every inlet location, 20-gauge low-voltage wire run alongside it, and backing plates with plaster guards protecting the open pipe ends. Nothing about the power unit itself gets decided at this stage.
| Component | Purpose |
|---|---|
| 2-inch PVC trunk and branch pipe | Carries debris from every inlet to the power unit location |
| 20-gauge stranded low-voltage wire | Signals the power unit to switch on when a hose is plugged in |
| Inlet backing plate | Anchors the valve to the stud before drywall closes |
| Plaster guard / mud cover | Keeps drywall mud and texture out of the open pipe during finishing |
The Full Version: Piped, Wired, and Ready to Finish
The full version runs complete 2-inch PVC trunk and branch lines from the power unit location to every inlet, with 20-gauge wire following the same path back to the unit. MD Manufacturing’s central vacuum rough-in installation specifications call for stud-mounted backing plates and plaster guards at every location.
Those guards protect the open pipe ends while drywall crews mud and texture around them.
The Bare Minimum Version Builders Love
The bare minimum version is just a single pipe stub dropped to the nearest unfinished space, with no trunk line and no wire spliced between floors. As one installer put it on a builder forum, “This is how I rough in houses, that’s all the builder pays for.”
Both get called roughed in on the same listing sheet, but only one actually works.
Why This Gap Burns Homebuyers
This gap burns homebuyers because a lone stub with no trunk line looks identical to a finished rough in once the wall closes. Buyers assume connected tubing, finish the basement, and lose access forever.
One owner on RedFlagDeals popped open a kitchen VacPan cover and found it connected to nothing, not even a stub. Ask for the pipe map in writing before you close, not after.
The Pipe Rules That Prevent Clogs for Decades
The pipe rules that prevent clogs come down to smooth interior walls and long, gentle turns. Think of the difference between a waterslide and a gravel road: debris moves through one and catches in the other.
Vacuum PVC Is Not Plumbing PVC
Vacuum-rated PVC is not plumbing PVC. It’s 2-inch outer diameter, thin-wall pipe with a completely smooth interior bore built to move debris, not water under pressure.
Plumbing pipe from the hardware store has a rougher interior that catches lint and builds clogs over years. A handful of legacy systems, older Dirt Devil central vacuum units among them, used a narrower pipe bore, so match your existing tubing diameter before gluing anything new to it.
Sweep Elbows Everywhere Except One Spot
Sweep elbows belong in every turn along the pipe run, with exactly one exception: a tight 90-degree elbow sits directly behind each inlet valve. Long sweep elbows keep debris moving through turns instead of stalling against a sharp edge.
That single tight 90 behind the inlet isn’t a mistake. It’s a designed debris trap, catching the stray toy or comb close enough to the wall that you can actually retrieve it.
Two 45s Beat Two 90s Every Time
Two 45-degree bends beat two 90-degree bends on any offset jog, because every fitting added costs suction at the far end of the run. Minimize the total fitting count and run the trunk as straight as the framing allows.
Every fitting you skip is suction you keep at the farthest inlet.
Glue Like You Mean It, But Only on the Pipe
Cement goes on the pipe only, never inside the fitting, or it pushes ahead and forms a ridge that snags hair and string for years. Get the sequence right and every joint stays clean inside:
- Cut pipe with a tubing cutter, not a hacksaw.
- Debur every cut edge before dry-fitting.
- Apply cement to the male end of the pipe only.
- Twist a quarter turn on assembly and wipe the excess immediately.
Inlet Placement: The Decision You’ll Feel Every Saturday
Inlet placement decides how much of Saturday gets spent dragging a 30-foot hose around a two-story house instead of actually cleaning. Get the system design and layout right before drilling a single hole, since inlet count and pipe map both flow from that plan.
Count by Hose Reach, Not Square Footage Marketing
Count inlets by hose reach, not by a square footage chart from a dealer brochure. One inlet with a 30-foot hose covers roughly 600 to 900 real square feet once furniture, doors, and stairs enter the picture.
| Home Size | Inlets Needed | Approx. Pipe Footage |
|---|---|---|
| 1,500 sq ft | 2 to 3 | 90 to 150 ft |
| 2,400 sq ft | 3 to 4 | 150 to 220 ft |
| 3,000+ sq ft | 5 or more | 250+ ft |
Dealer coverage claims assume a straight line with no walls in the way. Walk the floor plan with a 30-foot string before approving any layout.
Hallways, Stair Bases, and the Spots Everyone Forgets
Place inlets near stair bottoms and central hallways, not bedroom corners, so the hose goes up the stairs instead of down them. Hallways and central doorways beat far corners for reach.
Think about the garage, the porch, and the mudroom before the walls close. Nobody adds those later.
The Toe Kick Inlet Your Kitchen Deserves
A toe-kick inlet, sold as a VacPan, needs its slot cut into the cabinet base during rough in, not after the kitchen is finished. One method from eVacuumStore uses a temporary block so flooring trades finish tile or hardwood around the opening without guessing where it lands. Skip this step now, and a sweep inlet never gets added to a finished island.
The Wiring and Code Details Nobody Mentions
The wiring and code details nobody mentions: low-voltage signal wire, the power unit’s dedicated circuit, and fire-block rules that vary by county.
Low Voltage Is Simple, 110 Volt Is Not
Low-voltage wiring is simple enough for most homeowners; 110-volt wiring for an electric power brush is not, and it needs a licensed electrician. The 20-gauge stranded signal wire daisy-chains from inlet to inlet and back to the power unit as a home run.
Full detail on splicing and home-run routing lives in wiring a central vacuum system. Decide on a hardwired electric carpet brush now, because that 110-volt line can’t be fished in after drywall closes.
The power unit needs a separate branch circuit once its rating exceeds half the circuit’s ampere rating, a rule covered in the NEC branch-circuit requirements for central vacuums under NEC Sections 210.23(A)(2) and 422.15. In practice that means a dedicated 15-amp circuit above a 7.5-amp unit, or a dedicated 20-amp circuit for units rated between 10 and 16 amps. Land that receptacle at rough in, before insulation goes up.
Fire Blocks, Firewalls, and the Metal Pipe Rule
Some local codes ban PVC pipe from penetrating fire-block walls outright, so check before drilling through a garage firewall. A steel sleeve or fire-stop collar handles those penetrations where PVC isn’t allowed.
Pipe running near a water heater or chimney flue should switch to metal for that section.
Cold Spaces Need Insulated Pipe
Pipe running through an unheated crawl space or attic needs insulation, because temperature swings make it sweat and drip condensation inside the line. Condensation inside vacuum pipe mixes with fine dust and hardens into something close to concrete over time.
Wrap any run through unconditioned space before gluing the last joint.
Planning a Retractable Hose? Your Rough In Changes Completely
A retractable hose system changes the rough in completely, because the pipe itself has to store the hose instead of just carrying debris to the unit.
The Pipe Stores the Hose, So the Math Flips
Retractable systems park the hose inside the pipe, so a 40-foot hose needs at least 44 feet of pipe ahead of any junction, not the shortest path to the unit. Runs sometimes route away from the power unit, loop, and come back just to bank enough length.
Measuring pipe the way a standard system gets measured leaves the hose unable to fully retract.
One Inlet Can Replace Three
One retractable valve can replace three standard inlets, because a 50-foot retractable hose covers roughly 3,000 square feet from a single point.
| Hose Type | Coverage per Inlet |
|---|---|
| Standard 30-ft hose | 600 to 900 sq ft |
| Retractable 50-ft hose | Up to 3,000 sq ft |
Fewer inlets sounds like less work, but every foot of pipe placement becomes less forgiving. Deciding between traditional and retractable after the rough in is finished means redoing the rough in.
The VacuMaid HS5000 rough-in kit, built by Lindsay Manufacturing for Hide-A-Hose retractable valves, is required at every valve location in new construction. Check the Hide-A-Hose HS5000 valve rough-in requirements before framing goes up, since the frame screws to the studs before drywall and only accommodates wall thickness up to 1.5 inches, which rules out reframing after the fact.
Test With Suction Before the Sheetrock
Test suction at every valve before the sheetrock goes up, because a bad joint is a ten-minute fix now and a cut-open wall later. Seal unused valves with a hand ball and pull vacuum through the system with a shop vac and a gauge.
Manufacturer specs call for sealed vacuum at the valve to land within 3 to 5 inches of the reading at the unit itself. Ten minutes of testing beats cutting drywall to find a leak next year.
What a Fair Rough In Quote Looks Like
A fair rough in quote separates pipe, wire, and inlet hardware from electrical work and lists them by line item, not as one lump sum.
The Numbers Builders and Owners Actually Report
Professional rough in during new construction ranges from $1,094 to $2,194, based on builder-reported quotes.
| Scope | Typical Range |
|---|---|
| Rough in only (new construction) | $1,094 to $2,194 |
| Complete installed system (new build) | $2,500 to $4,500 |
| Full retrofit into finished walls | Higher than new-build rates, priced per job |
Forum-reported pricing runs near $100 per inlet including electrical. One Houzz build thread priced the rough in at $500, electrical at $200, and a VacPan add-on at $175.
Where DIY Saves Real Money
DIY rough in work saves homeowners roughly 30 to 50 percent versus a fully installed system, based on owner-reported numbers. The required skills are honest: drilling through studs, cutting and gluing pipe, and splicing low-voltage wire.
Buy the 2 9/16-inch self-feed bit installers swear by; your drill arm will thank you.
The Line Items That Quietly Inflate Quotes
Specialty fittings, fire-stop hardware, and a dedicated circuit are the line items that quietly inflate a quote after the first walkthrough. Ask whether the quote covers plaster guards and backing plates, or just pipe and fittings.
Most counties don’t require a permit for low-voltage work, but confirm the local rule before you start.
Bought a Home That’s “Roughed In”? Verify Before You Celebrate
Verify a roughed-in home before you celebrate, because no one on the sale side was required to confirm the pipe actually connects to anything.
Your Home Inspector Probably Skipped It
Your home inspector almost certainly skipped the central vacuum system, since InterNACHI-based inspection standards list it as not required to inspect. The plastic inlet plates on your walls prove nothing about what’s behind them.
“Roughed in” on the listing sheet was likely never verified by anyone holding a flashlight.
The Flashlight Test Anyone Can Do Tonight
Pop an inlet cover and shine a flashlight down the pipe tonight; the beam will hit daylight, a dead end, or a clean run to the basement. One owner looked into a garage stub and saw straight through to daylight outside the house, pipe that had never been connected to anything.
Find where pipe stubs emerge in the basement, attic, or garage, and count them against the wall inlets. A mismatch means disconnected runs.
When the Runs Don’t Connect
When two separate floor runs arrive at one wall without joining, suction bleeds from both lines instead of pulling from either one. Separate stub-outs can join through a wye fitting at the power unit location.
Forum installers fix this with a countersunk elbow and careful alignment between the runs.
Conclusion
You arrived worried that roughed in was a mystery buried behind drywall. Now you know the pipe, fittings, wire, and tests that separate a real rough in central vacuum system from a listing-sheet line. Tonight, pop one inlet cover and shine a flashlight down the pipe, or walk open framing with a 30-foot string and chalk every inlet location before the crew arrives. Ready to connect a power unit? Central Vacuum Lab’s installation guide picks up from here. A portable vacuum depreciates in the closet; pipe roughed in correctly today still delivers full suction after that vacuum is three replacements gone.
Frequently Asked Questions
What does “rough in” mean for a central vacuum system?
It means installing the PVC pipe, low-voltage wire, and inlet backing plates before drywall closes, so a power unit can connect later without opening a wall. Nothing about the vacuum itself, the hose, or the motor needs to be chosen yet.
When during construction should the central vacuum rough-in happen?
Right after electrical and HVAC rough-in finish, before insulation and drywall go up. That’s a single week-long window on a standard build schedule.
How many inlets should I rough in for my square footage?
Count by hose reach, not a square footage chart. One inlet with a 30-foot hose realistically covers 600 to 900 square feet, so a 2,400-square-foot home needs three to four inlets.
Can I use regular plumbing PVC pipe for a central vacuum rough-in?
No. Vacuum-rated 2-inch PVC has a smooth interior bore built for moving debris; plumbing pipe from the hardware store catches lint and clogs over time.
My house has a central vacuum rough-in already, how do I finish it and connect a unit?
Pull the existing pipe and wire out to daylight at each stub, confirm continuity with a shop vac and gauge, then match a power unit’s inlet size to what’s already glued into the wall. A CVAC-certified installer can confirm compatibility in under an hour.
