Central vacuum system design decides whether your setup performs before you ever pick a power unit. You’re about to bury pipe inside walls you’ll never open again, and one lazy elbow choice haunts you for 20 years. Dealers sell motors, not layout, and the pipe map decides more of your suction than any spec sheet.
Finish this guide and you’ll sketch your inlet map, pipe route, and exhaust plan on one sheet of paper. You’ll know which questions expose a lazy installer, and which numbers to ignore.

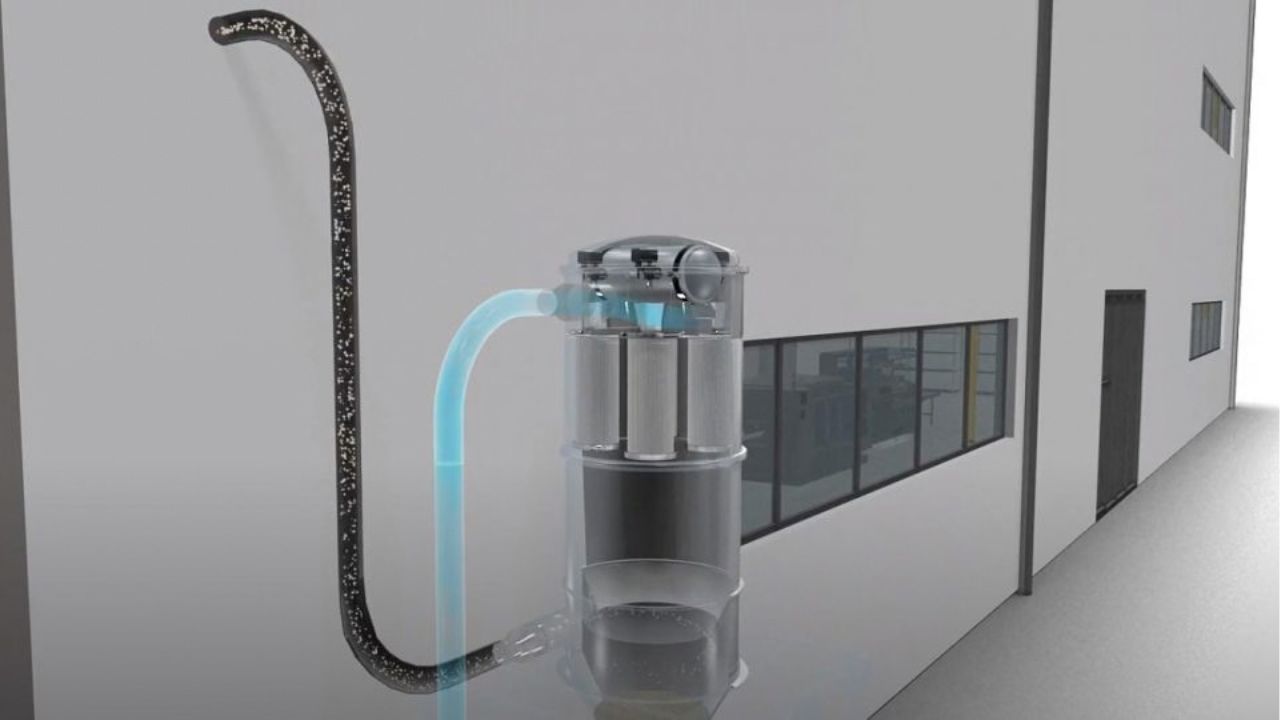

Keynote: Central Vacuum System Design
A central vacuum system lives or dies on pipe geometry. Every design call you make before buying a unit, inlet count, pipe routing, elbow choice, power unit placement, matters more than the brand on the canister. Get the layout right first. The motor just has to keep up with it.
Why Most Systems Underperform From the First Day
Most systems underperform because the design happens after the unit gets picked, not before, so homeowners inherit whatever pipe layout the installer feels like running that day.
The Spec Sheet Can’t Save a Bad Pipe Map
The spec sheet measures power at the canister, not at your hand fifty feet away. You feel the letdown at the farthest inlet, never in the brochure. Air watts are a combined measure of airflow and suction pressure, calculated at the hose end under test conditions, and they describe the unit alone, not your finished pipe run.
Every fitting taxes that number quietly: a 90 degree turn, a rough joint, a long run all bleed suction before it reaches your hand. The ASTM air performance test method for vacuum cleaners makes this explicit: results show the maximum potential air power under lab conditions, not the actual air power you get once tools, hose length, and surface type enter the picture.
Manufacturers publish that lab number and stay silent on what your specific pipe run does to it. Ask yourself this: does the brochure number account for your longest run, or just a hose plugged straight into the motor on a test bench?
Why Dealers Talk Motors and Skip Layout
Dealers talk motors because motors carry margin, and layout advice is free. An honest installer FAQ will admit outright that no major manufacturer publishes a pipe run to power matching chart, which leaves the math to you.
Required unit power depends on your longest run adjusted for every elbow along the way, not square footage alone. No brand ties its wattage tiers to pipe-run friction loss in writing, which shifts the entire performance risk onto the homeowner, exactly why the design work below happens before you open a unit brochure.
Start Your Design With the Hose, Not the Unit
Start with the hose reach, not the canister spec. Reverse the order every showroom pushes you toward, and the inlet count and pipe route fall out of that decision naturally.
The String Test That Maps Your Inlets in One Afternoon
Thirty feet of string and a stick will map your entire inlet layout in one afternoon, more honestly than any dealer walkthrough. Here’s how it works:
- Tie 30 feet of string to a stick and stand at your planned power unit location.
- Walk to the corner of your home farthest from that spot.
- Loop the string around real furniture, stair rails, and door swings as you go, not straight lines on a blueprint.
- Mark where the string runs out, then overlap your next zone slightly so no corner sits at maximum stretch.
Furniture moves. Rugs get added. A string test done around the couch you actually own beats a floor plan measured in an empty room.
How Many Inlets You Actually Need
Plan inlet count by square footage per floor, not your home’s total square footage. One inlet covers roughly 600 to 800 square feet of real, furnished floor space with standard hose lengths.
Most homes land at one or two centrally placed inlets per story once you calculate it this way. Extra inlets add installation cost and extra leak points at every valve without adding real convenience, since a properly placed inlet already reaches every room on its floor. Hallways, stair landings, and central doorways beat bedroom walls almost every time, because they sit at the center of your string-test radius instead of its edge.
The Spots Everyone Forgets Until It’s Too Late
Homeowners forget the toe kick and the garage until they’re three years into daily crumbs and car cleanup. A toe kick inlet under the kitchen cabinets swallows sweepings without you bending down, and one garage inlet turns car detailing from a dreaded chore into two minutes.
Check that your hose actually reaches ceiling corners and the top stair landing before you finalize inlet count. When you’re mapping room by room, don’t skip adding vacuum ports in bathrooms, since bathroom rugs and hair at the vanity are exactly the debris a canister vacuum handles worst. Inlets hidden behind a door swing or a sofa that never moves simply never get used.
What’s the one room in your home nobody vacuums because the outlet is inconvenient? Start your inlet map there.
Pipe Routing Rules That Protect Your Suction
Pipe routing protects suction more than any motor upgrade can. Once your inlet map is set, translating it into an actual rough in central vacuum layout comes down to a short list of routing rules installers who care actually follow.
One Trunk Line, Short Branches, No Spaghetti
Think of your pipe layout as a tree, not a plate of noodles. The trunk line is the single main pipe running from the power unit to your farthest inlet, and it should run straight through the home’s center, typically through the basement or attic.
Branch lines feed individual inlets directly off that trunk, and they stay short. Every extra foot of pipe and every extra fitting steals a little more airflow, so five short branches off one straight trunk always outperform a maze of runs looping through unrelated rooms.
The Elbow Mistake That Wrecks Airflow
Standard 90 degree elbows in the wrong spot choke a system that would otherwise perform fine. One forum installer described a system throttled at every single turn because the crew used short 90s throughout instead of sweeping the air around each corner.
A sweep 90 is a wide-radius elbow that turns airflow gradually instead of forcing it around a sharp corner, and it belongs everywhere except one spot. Here’s the corrected version of that same layout:
- Use sweep 90s or two paired 45 degree elbows at every turn along the trunk and branch lines.
- Reserve a short 90 elbow for exactly one location: directly behind the inlet valve itself, where the hose needs a tight turn to seat properly.
- Choose Y fittings over T fittings everywhere two lines merge, since air entering at an angle keeps moving instead of colliding head-on.
- Recount your elbows against the farthest inlet distance before you commit to pipe diameter or unit size.
Installers who’ve fixed all-short-90 layouts report the airflow difference is immediate, not subtle.
Central Vacuum Tubing Versus Plumbing PVC
Vacuum-grade tubing and plumbing-grade Schedule 40 PVC are not interchangeable, even though both come in 2 inch sizing. Central vacuum tubing is built to ASTM F2158, the standard written for vacuum tubing, with thin, smooth interior walls sized by outside diameter. Plumbing pipe is sized by inside diameter, so its fittings won’t mate cleanly with vacuum-rated valves and elbows without adapters.
| Factor | Vacuum-rated tubing | Schedule 40 plumbing PVC |
|---|---|---|
| Sizing method | 2 inch outside diameter | Measured by inside diameter |
| Wall/interior finish | Thin wall, smooth bore for airflow | Thicker wall, rougher interior |
| Fitting compatibility | Matches vacuum valves and elbows directly | Needs adapters at every connection |
| Cost | Higher per foot | Lower per foot |
Sources disagree here. Some vacuum specialty retailers say never use plumbing pipe, full stop. Some big-box installation guides permit 2 inch Schedule 40 with the right adapters. The real distinction isn’t the Schedule 40 label, it’s fitting geometry and interior smoothness, and mixing the two means checking every joint.
Small Habits That Keep Debris Moving for Decades
The habits that keep a system running for 20 years are boring, exactly why they get skipped. Deburr every cut, inside and out, before cementing any joint, since a rough burr snags hair and string long before it clears the trunk line.
Air leaks at sloppy glue joints bleed suction across the entire system, not just at that one connection. Strap long runs so pipe never sags into a debris-catching dip, and slope the line toward the power unit where framing allows, so gravity helps grit travel home.
Where the Power Unit Lives Changes Everything
Power unit placement changes noise, motor life, and how often you empty the canister, not suction alone. Get this decision wrong and every other design choice inherits the problem.
The Garage Versus Basement Versus Utility Room Question
Pick a heated, ventilated spot away from bedrooms and living areas, and the garage-versus-basement debate mostly comes down to climate. Garages offer easy emptying and a built-in inlet for vehicle cleanup, but cold, unheated spaces demand insulated pipe to stop winter condensation inside the runs.
Furnace rooms and tight utility closets cook motors with ambient heat and shorten their life. In a two-story or split-level home, placing the unit on the lowest floor helps heavy debris travel down instead of fighting gravity on every pass.
Clearances and Wiring Details That Prevent Callbacks
Clearance and wiring mistakes are the callbacks installers dread most, and they’re preventable at the design stage. Mount the power unit roughly 18 inches off the floor and at least 12 inches below the ceiling, and keep a dedicated outlet within six feet of the mounting location.
The circuit itself isn’t a blanket 20-amp rule, no matter what a dealer FAQ claims. The NEC branch-circuit requirements for central vacuums tie the requirement to actual amperage: Sections 210.23(A)(2) and 422.15 require a separate circuit once equipment draws more than 50% of the branch circuit’s rating, meaning a dedicated 15-amp circuit above 7.5 amps, or a dedicated 20-amp circuit above 10 amps but under 16.
Label every low-voltage wire run before drywall closes for good. That single habit saves hours of guesswork the day an inlet stops signaling the power unit.
The Exhaust Question That Splits Every Forum Thread
Exhaust venting splits opinion because it depends on motor type, and dealers rarely explain which type they’re selling you. One owner online described a fine dust film settling near an unvented unit for months before tracing it back to the exhaust.
When Outdoor Venting Is Optional and When It’s Mandatory
True cyclonic units must vent outdoors, full stop, because fine dust escapes the cyclonic separation stage and needs somewhere to go besides your utility room. Bagged and HEPA-filtered units can technically self-vent indoors, but owners still report a fine dust film settling nearby.
One owner on a home forum added outdoor exhaust venting to a self-venting unit to chase down that lingering dust, and reported the film disappeared. Outdoor venting also cuts noise at the power unit, since the exhaust roar exits the house instead of a closet.
Would you rather explain a dust film to your allergist, or run one extra length of exhaust pipe to the outside wall?
Exhaust Run Rules Nobody Mentions Until Something Melts
Long exhaust runs create back pressure that steals system power, the same way a kinked garden hose steals water pressure. Keep exhaust runs short, generally 10 to 25 feet, and never vent into a wall cavity, ceiling space, or attic where moisture and dust have nowhere to go.
Never tie the exhaust into a dryer vent line. Dryer moisture ruins vacuum motors. Point any exterior termination downward and keep the flap clear of ice, since a frozen flap creates the same back-pressure problem as a run that’s too long.
Designing Around a Retractable Hose From Day One
Retractable hose systems rewrite your entire pipe plan, and that decision has to happen before rough-in, not after. Owners who plan for it from day one report loving the daily convenience, with one shared regret that shows up again and again.
Why Retractable Systems Rewrite Your Whole Pipe Plan
A Hide-A-Hose system stores the hose itself inside dedicated tubing at each valve, so the pipe run does double duty as hose storage and airflow path. Hide-A-Hose, the company behind the retractable-hose design most installers use, publishes exact minimums in its own Hide-A-Hose installation requirements: a 40 foot hose needs at least 44 feet of pipe before joining another run, plus another 20%, up to 10 extra feet, for hose stretch over time.
One 40 to 60 foot retractable hose can replace three standard inlets, since coverage per valve runs roughly 900 to 2,300 square feet. Conventional fittings won’t work here. Every elbow needs to be a sweep 90 or 45, not the sharp-turn fittings a standard system tolerates, and guidance caps most valves at four 90-degree turns total, since each added turn adds resistance pulling the hose back out.
Planning this at the framing stage costs little extra. Retrofitting it into a finished home requires attic or crawlspace access to route the extra pipe length, a real limitation worth naming up front.
The Trade Offs Owners Admit After Years of Use
Owners rarely regret buying a retractable system, but nearly all mention the same design lesson learned the hard way. One owner on a home renovation forum said flatly she wished she’d planned the turns near her busiest valve more carefully, since tight elbows there weaken retraction over years of daily pulls.
Retractable valves cost more than standard ones. One dealer quote showed valve pricing jumping from around $125 for a standard inlet to roughly $700 for a retractable one, worth weighing against three eliminated inlets and their pipe runs. Critics point out the hose lives inside the same pipe carrying dirt and debris, a fair trade-off to know going in.
Long-time owners still say, without hesitation, they’d never build a system again without it.
Retrofit Design When Your Walls Are Already Closed
Retrofit design works even when your walls are already closed, and closets are your secret weapon. The house being finished doesn’t rule out a well-designed central vacuum system, it just changes where the pipe runs live.
Can You Design a Central Vacuum Into an Existing Home?
Yes, and most retrofits finish in a day or two with small, easily patched openings. Closets and stacked plumbing walls hide vertical pipe runs beautifully, letting an attic trunk line drop through a wall, or a basement line rise through a floor cavity, without touching a finished room.
Ranch homes with attic or basement access retrofit easiest, since one flat routing plane handles most of the trunk line. New construction still has the edge, because installing central vacuum in new builds lets you dictate unit location, inlet placement, and pipe diameter before a wall closes, a decision you cannot revisit once drywall goes up.
The Coat Hanger Trick and Other Locating Methods
A stiff wire drilled beside the baseboard marks the wall cavity below more reliably than any stud finder. Drill a small pilot hole, feed the wire down, and you’ll know within inches where that cavity runs before you commit to a valve location.
Always scan for hidden wiring, plumbing, and ductwork before cutting anything, since a retrofit run that hits an electrical cable is a bigger problem than a missed inlet. Match inlet height to nearby outlets for a clean look, and dry fit the entire run before any glue touches a joint.
What Makes a Central Vacuum System Design Actually Work?
A working design comes down to the shortest practical pipe, the smoothest fittings, and inlets mapped from real hose reach, not a floor plan guess. The design decides performance. The unit just has to keep up with what you’ve already built.
A one-page sketch tonight, string test included, prevents a decade of weak suction at the inlet that matters most.
Matching Unit Power to the Design You Just Drew
Unit power gets matched to the design you already drew, not the other way around. Now, and only now, are you ready to shop for a power unit, and it helps to estimate the total cost of the whole project once your pipe run and inlet count are final.
Your Longest Run Sets Your Power Floor
Your longest pipe run, not your average one, sets the power floor for the entire system. Total the pipe distance from the power unit to your single farthest inlet, then count every elbow along that path, since each one adds effective length through friction.
Buy for that worst-case inlet. A unit that handles your average run comfortably can still leave the farthest bedroom starved for suction, and discovering that weakness after drywall goes up costs far more than sizing slightly larger up front.
Motor Type Matters More Than the Wattage Sticker
Motor type predicts long-term reliability better than the wattage number on the box. A tangential bypass motor cools itself with a separate stream of outside air, keeping bearings away from the dirty airflow, which extends working life. A thru-flow motor cools using the same dirty air it moves, which shortens motor life as dust and grit pass across the windings.
Forum veterans bluntly warn new builders away from thru-flow designs for exactly this reason. Ask any dealer which motor type sits inside the unit they’re quoting, and watch closely how quickly, or how evasively, they answer.
Conclusion
You arrived thinking the power unit was the decision and the pipe was a plumbing detail. You leave knowing the layout is the system, and the canister is just the engine bolted onto it, whether you handle the central vacuum system installation yourself or hand your sketch to a crew.
Tonight, grab 30 feet of string and your floor plan, and mark each inlet location in pencil. A portable vacuum wears out and gets replaced. A well-designed pipe network outlasts three power units, exactly why this one drawing pays you back for decades.
Frequently Asked Questions
How many inlets does my home actually need?
Plan for one inlet per 600 to 800 square feet of floor space, calculated per story, not for your home’s total square footage. Most houses land at one or two centrally placed inlets per floor once you run the string test.
Can I use regular Schedule 40 plumbing PVC for central vacuum piping?
No, not without adapters, since plumbing PVC is sized by inside diameter while vacuum tubing is sized by outside diameter and built to ASTM F2158 for a smooth interior bore. Mixing the two means checking fitting compatibility at every single joint, not just the first one.
Does a central vacuum system need a dedicated electrical circuit?
Yes, once the unit’s amperage rating exceeds 50% of the branch circuit’s rating, per NEC Sections 210.23(A)(2) and 422.15. That works out to a dedicated 15-amp circuit above 7.5 amps, or a dedicated 20-amp circuit above 10 amps.
Where should the power unit go in my house?
Choose a heated, ventilated spot on the lowest floor, away from bedrooms and living spaces. The garage suits vehicle cleanup and easy emptying, but needs insulated pipe in cold climates to prevent condensation inside the runs.
Is a Hide-A-Hose retractable system worth redesigning around?
Yes, if you plan the pipe runs and sweep fittings before rough-in, since retrofitting one later requires attic or crawlspace access. Budget for pipe runs at least as long as your hose, plus up to 20% extra for stretch, and expect valve costs several times higher than a standard inlet.
